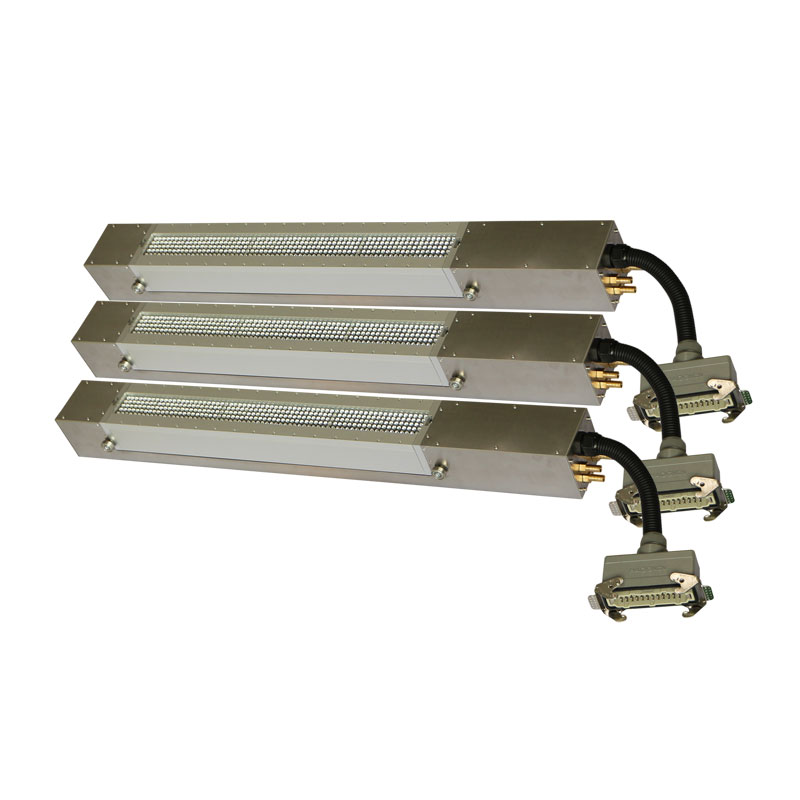

UV LED Curing Equipment UV LED Lamp For Painting Coating Ink Glue
UV LED Curing Equipment Description
" LED" UV curing lamp is a new technology and way emitting ultraviolet ray radiation to dry UV series materials resin/ink/varnish/adhesive/coating etc with fast speed and good peformance in nowadays .
UV LED Curing Equipment Datasheet
| Model | CG-CT3-40027-1500A | lamp color | Rose golden |
| Power | 1500W | Chip brand | LG/Seoul |
| Input voltage | AC85-265V | Wave length | 365/385/395/405nm |
| Application | UV ink/vanish/coating /adhesive curing | Life span | 20000H |
| Cooling way | Water cooling | Emitting window size | customized |
| UV intensity | 18W/CM2 | Dimmable | 0%-100% |
| Best emitting distance | 30-50mm | Package | wooden case |
UV LED Curing Equipment Advantages
- Energy-saving ,normally 1000W LEDUV equal to 6000W mercury lamp drying effect .
- Environment friendly , No mercury. No ozone making and VOC discharge.
- NO warm-up , turn on/off instantly.
- Low temperature, can be used for PE and film ink cuing .
- Long lifespan, 20000hours .
UV LED Curing Equipment FAQ:
Q1: What’s the wavelength of the leduv lamp ?
A1: Usually 395-405nm The 395nm/385nm is used for printing machine ,365 nm is for adhesive.
Q2: What’s your led brand ?
A2:LG/Seoul
Q3: What’s the material of lamp and lens ?
A3: Aluminium /quartz
Q4: What’s the cooling way for the leduv curing system ?
A4: Water or air cooling
Q5: The uv intensity can be change?
A5: Yes, the uv intensity is changeable from 0%-100%
Q6: What’s the max energy of uvled lamp ?
A6: It’s depend on emitting time , the longer the higher energy output total amount.
Q7: What’s the lifespan of the uvled curing lamp ?
A7: Our warranty is 2yeas for all system (Chiller /power supply ) mostly can reach 5yeas
